Automated Glue Dispensing Robot Smart Mirror Base Adhesive Application
Introducing the Automated Glue Dispensing Robot Smart Mirror Base Adhesive Application – a cutting-edge solution designed to revolutionize precision adhesive dispensing in smart mirror manufacturing. This advanced robotic system seamlessly integrates with production lines, ensuring unparalleled accuracy and efficiency in applying adhesives to mirror bases. Equipped with high-resolution sensors and AI-driven algorithms, it adapts to varying surface contours, eliminating human error and significantly reducing material waste.
Key features include real-time adjustments for optimal adhesive coverage, ensuring strong and durable bonds that enhance product longevity. Its user-friendly interface allows operators to easily monitor and control dispensing parameters, streamlining workflows and boosting productivity. By automating the process, this robot minimizes downtime and labor costs, making it an ideal choice for high-volume production environments.
Ideal for smart mirror manufacturers seeking to elevate quality and operational efficiency, the Automated Glue Dispensing Robot Smart Mirror Base Adhesive Application is a game-changer. Embrace the future of adhesive technology with this reliable, cost-effective, and high-performance solution.
Principle Description
Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air. back-lit panel light size are 2 feet by 2 feet or 2 feet by 4 feet
Machine Features
Floor stand design with wide working range(1500*600MM), suitable for big size work-piece;
Equipped hand programming controller, easy to learn and operate;
The instructions can be copied and arrayed;
Equipped industrial PLC controller, for different glue with different settings ensure the best performance;
Glue flow is stable without leakage and drawing.
Technical Parameters
| Model | TD-1560 |
| MCU | Three-axis Movement Controller |
| Programming | Teaching Programming |
| Drive Mode | Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way |
| Working Range(X*Y*Z) | 1500*600*100mm(Non-STD size can be customized) |
| Max Moving Speed | MAX 500mm/sec |
| Repeat Accuracy | ±0.02mm |
| Program Memory Capacity | About 10000 units |
| Dimension(L*W*H) | 2200*800*1200mm |
| Weight | 150Kg |
| Working Power | AC220V/50~60Hz/150W |
| Working Air Pressure | 0.4 ~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0 ~ 40℃ Humidity:20 ~ 90% |
Suitable Glue: 300ml or 2600ml single-component package for silicone, thermal conductive silicone grease, UV glue, AB glue etc.
Applications:Big size products, such as LED wash wall light, flood light, ceiling light, outdoor wall light, car headlight, smoke exhaust ventilator etc.

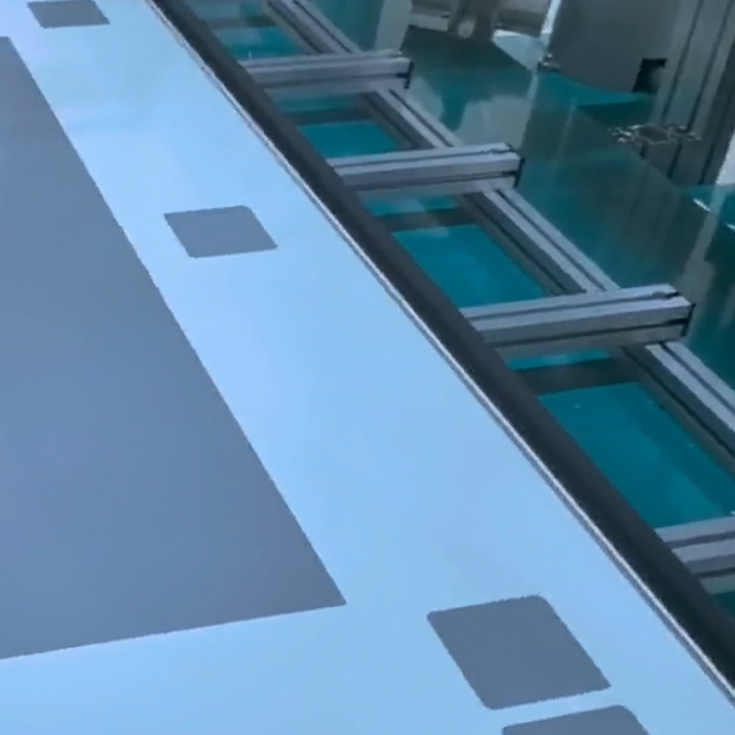

Machine Details
